BDS Suspension
4 Inch Lift Kit w/ 4-Link Ram 3500 19-23 4WD Diesel 8 Bolt Fox 2.0 Performance Shocks
$2,818.55
/
Sold out
Shipping calculated at checkout.
4 Inch Lift Kit w 4-Link Ram 3500 19-23 4WD Diesel
- Front Lift Method: 4-Link
- Rear Lift Method: Block
- Shocks Included: Yes
- Front Lift Height: 4 inch
- Rear Lift Height: 2 inch
- Dually with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
- Mega Cab inch's with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
- Vehicles equipped with a Manual T-case requires BDS122423 Manual transfer case shifter extension
- Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.
8 Bolt Indexing Ring
- Ram has an optional Aisin heavy-duty 6 speed transmission available in the 3500 trucks that utilize a different transfer case mounting bolt pattern (8-bolt).
- The 8-bolt kit also
- Includes an internal shaft seal extension and new shaft seal.
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (Internal Floating Piston) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5 8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish

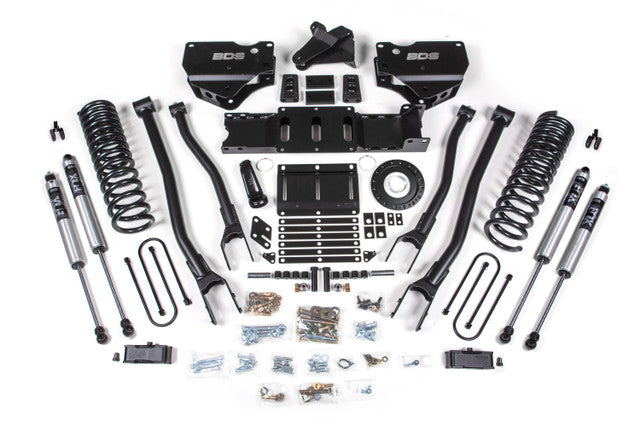

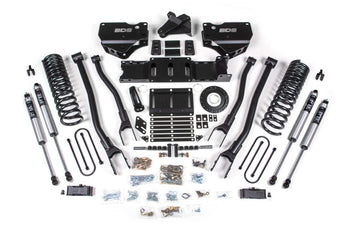

Kit Components:
- Includes one BDS012215, 2019-2024 Ram 3500 2 inch Rear Box 4 3 8 inch U-bolt w o overload, UPC Code 658848612116
- Includes one BDS012433, 2019-2024 Ram 2500 2019-2024 Ram 3500 4-Link Box Kit 1of2, UPC Code 658848612437
- Includes one BDS012434, 2019-2024 Ram 2500 2019-2024 Ram 3500 4-Link Box Kit - 2 of 2, UPC Code 658848612444
- Includes one BDS032491, 2019-2024 Ram 2500 2019-2024 Ram 3500 Coil Springs - 4 inch Diesel 5.5 inch Gas, UPC Code 658848616374
- Includes one BDS122421, 2019-2024 Ram 3500 T-Case Index 18deg - 8 Bolt, UPC Code 658848619542
- Includes two FOX98224714, Fox 2.0 Shock 26.74 x 16.65 x 2 - S50 EB1
- Includes two FOX98224759, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1 EB1
