4 Inch Lift Kit w/ Radius Arm Ford F350 Super Duty DRW 17-19 4WD Gas Suspension

Improve the ride on your 2017-2019 Ford F350 Dually inchDRW inch Super Duty gas truck with this 4-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your dually truck up right with clearance for up to 37 inch Tires.

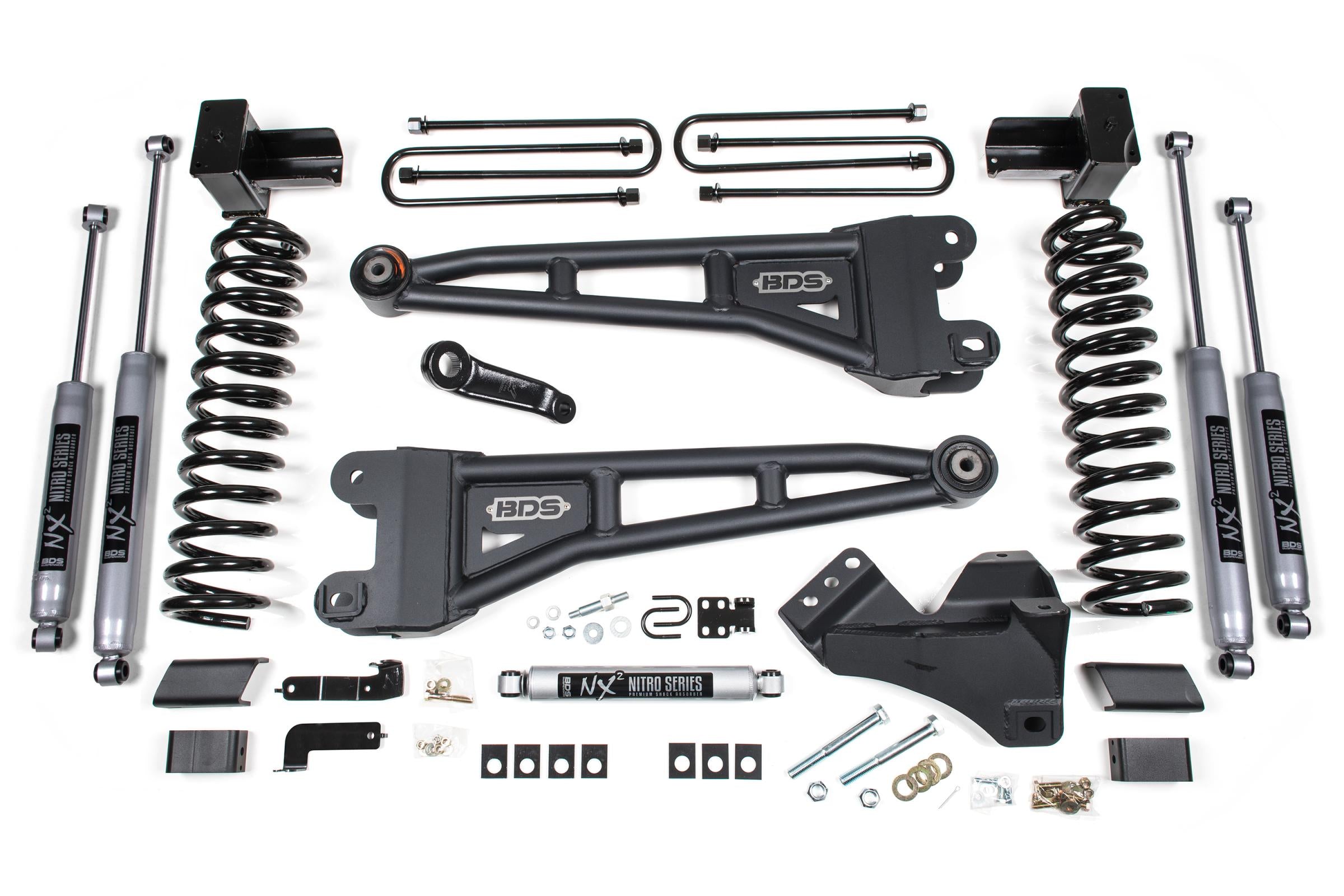

Up front the lift kit includes gas-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 3 inch

1. Removal of the factory leaf spring block is required. The net rear lift will vary depending on the height of the factory block but will result in a level stance.
2. If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
3. Front exhaust modification may be required to clear front drive shaft (Gas Only)
4. Torque wrench capable of 405 ft-lbs required.
5. 37 x 12.50 Tires may require minor trimming.

• Easy, 100 percent Bolt-on installation
• Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
• Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control

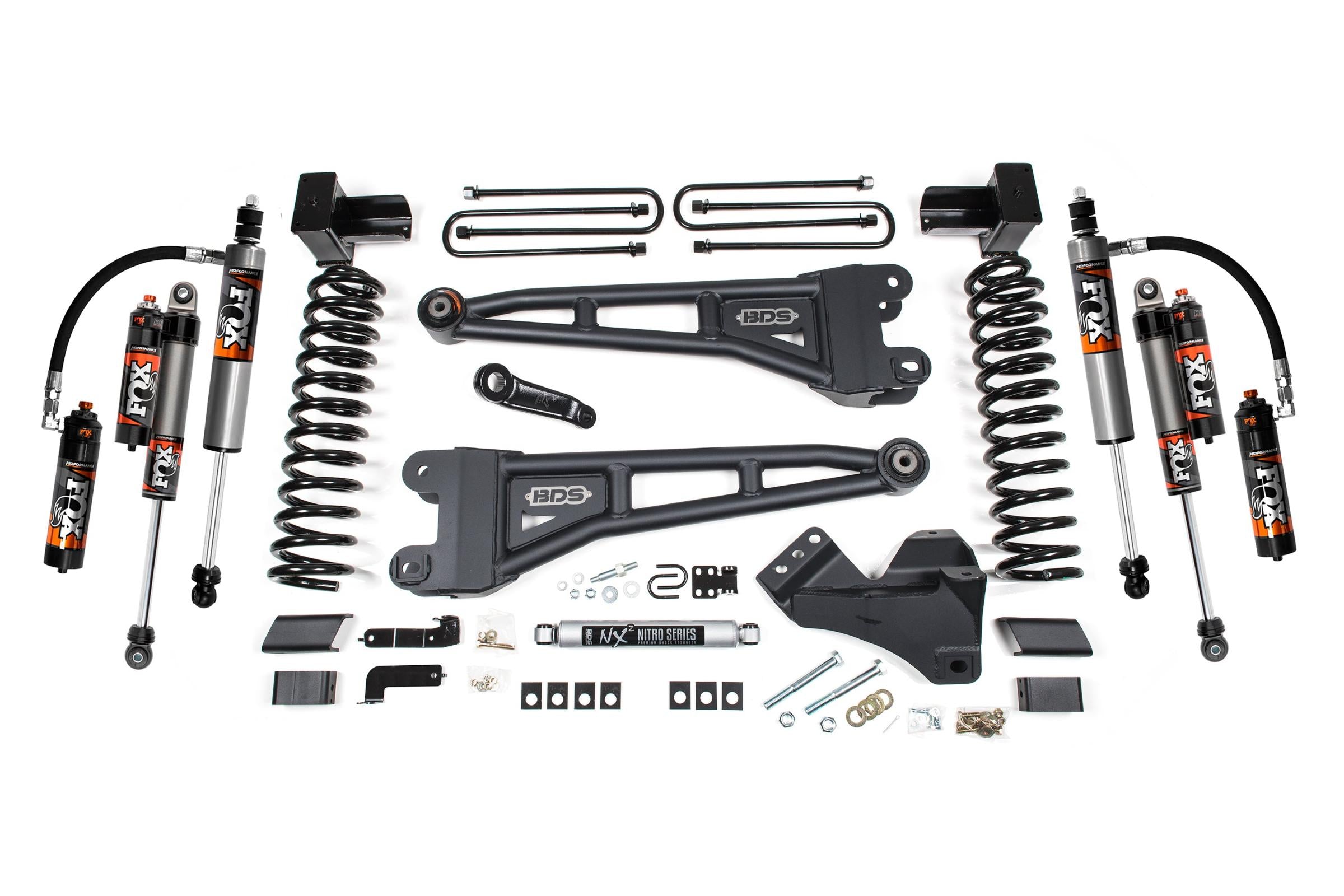

• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5 8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Tire Size: 37 x 12.5 Tire Size 2: 37 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5 5

Kit Components:

• Includes one BDS013414, 2017-2024 Super Duty 4 inch Front Box Kit, UPC Code 658848613458
• Includes one BDS013526, 2017-2020 F350 Dually 5 inch Block Kit, UPC Code 658848613632
• Includes one BDS033412, 2005-2024 Ford F250 F350 Gas 4 inch Coil Spring Kit, UPC Code 658848616534
• Includes one BDS123251, 2005-2022 Ford F250 F350 Radius Arm Kit, Pair, UPC Code 711745604087
• Includes one BDS85431, 2017-2024 F250 F350 Single Stabilizer, UPC Code 711745609242
• Includes two FOX98224700, Fox 2.0 Shock 25.65 x 16.05 x 2- S50 EB1
• Includes two FOX98224718, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1 EB1
