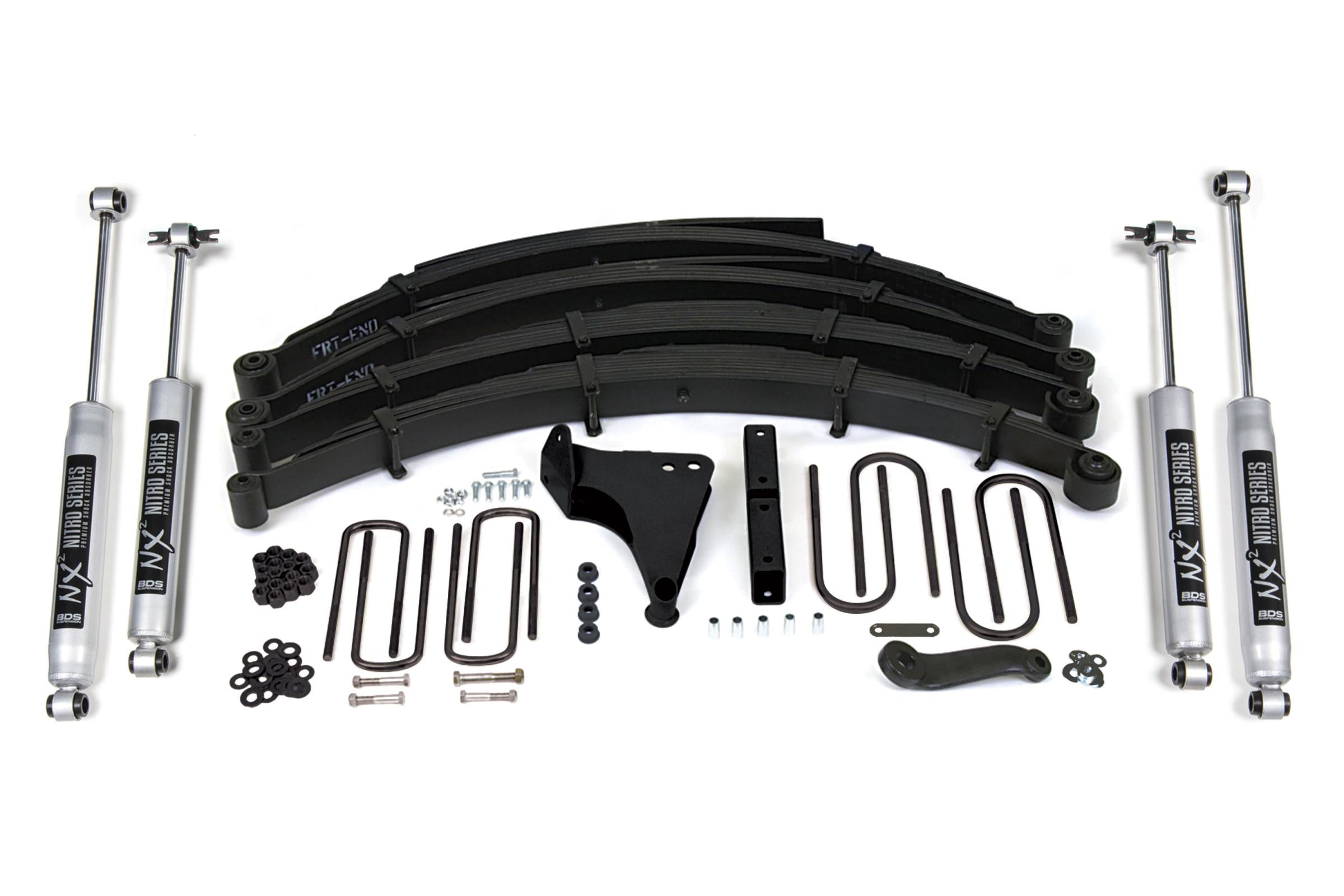

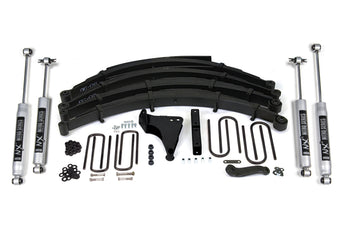

8 Inch Lift Kit Ford Excursion 00-05 4WD Suspension

Take your 2000-2005 Ford Excursion 4WD to the next level with this 8-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 36 inch Tires.

Up front the lift kit includes Glide-Ride leaf springs, forged drop pitman arm and track bar bracket for steering correction, sway bar links, bump stop brackets and precision tuned NX2 or FOX nitrogen charged shocks.

In the rear the base kit utilizes replacement Glide-Ride full leaf spring pack, u-bolts, and a matching set of NX2 Nitro or FOX Performance shocks.

Glide-Ride Leaf Springs

Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will reduce axle wrap and provide flexibility throughout the suspension cycle.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Leaf Spring
• Rear Lift Method: Leaf Spring
• Shocks Included: Yes
• Front Lift Height: 8 inch
• Rear Lift Height: 8 inch

1. Models with rear CV driveshaft may experience drive line vibration.
2. Front and rear driveshaft modification will be required.
3. Due to OE variances, you may need to change the rear block to level the truck.
4. 003202, 003402, 003602, 003609, 003802 & 003809 come with rubber bushings installed.

• Easy, 100 percent Bolt-on installation
• Glideride leaf springs to provide full lift height and increased capacity
• Track bar relocation bracket and pitman arm maintains proper steering angles for improved handling
• Cast steel blocks provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Shock Option

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5 8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Kit Components:

• Includes two BDS003602, Ford F250 350 6 Inch Front Spring, UPC Code 658848611362
• Includes two BDS003809, Ford F250 350 8in Rear Spring, UPC Code 658848611423
• Includes one BDS013006, 00-01 Ford F250 350 6&8in Front Box Kit, UPC Code 658848612963
• Includes one BDS013009, Ford F250 350 6&8in Rear Box Kit, UPC Code 658848612987
• Includes two FOX98224660, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1 EB1
• Includes two FOX98224762, Fox 2.0 Shock 33.85 x 20.75 x 2- BP8 EB1
