05-07 Ford F-250/F-350 Super Duty 4 Inch Radius Arm Lift Kit Diesel Zone Offroad

Climb up and stand out from the crowd with this 4 Inch Radius Arm Lift Kit that lets you clear 35 Inch tires. You'll definitely make a statement with this kit complete with bullet proof radius arms & cast blocks for your 4WD Diesel 2005 - 2007 Ford F-250 F-350.
Quick Specs:

• Front Lift Height 4 Inch
• Rear Lift Height 3 Inch
• Front Lift Method Radius Arm Drop
• Rear Lift Method Cast Blocks
• Lift Type Lift Kit
• Wheel Size 17 x 9
• Back Spacing 4.5 Inch
• Max Tire Size 35 x 12.5
• Wheel Size 2 18 x 9
• Back Spacing 2 4.5 Inch
• Max Tire Size 2 35 x 12.5
• Wheel Size 3 20 x 9
• Back Spacing 3 4.5 Inch
• Max Tire Size 3 35 x 12.5
• Is Adjustable No
• Finish Powdercoat
• Cutting Required No
• Accommodates Factory Wheels See Notes
• Welding Required No

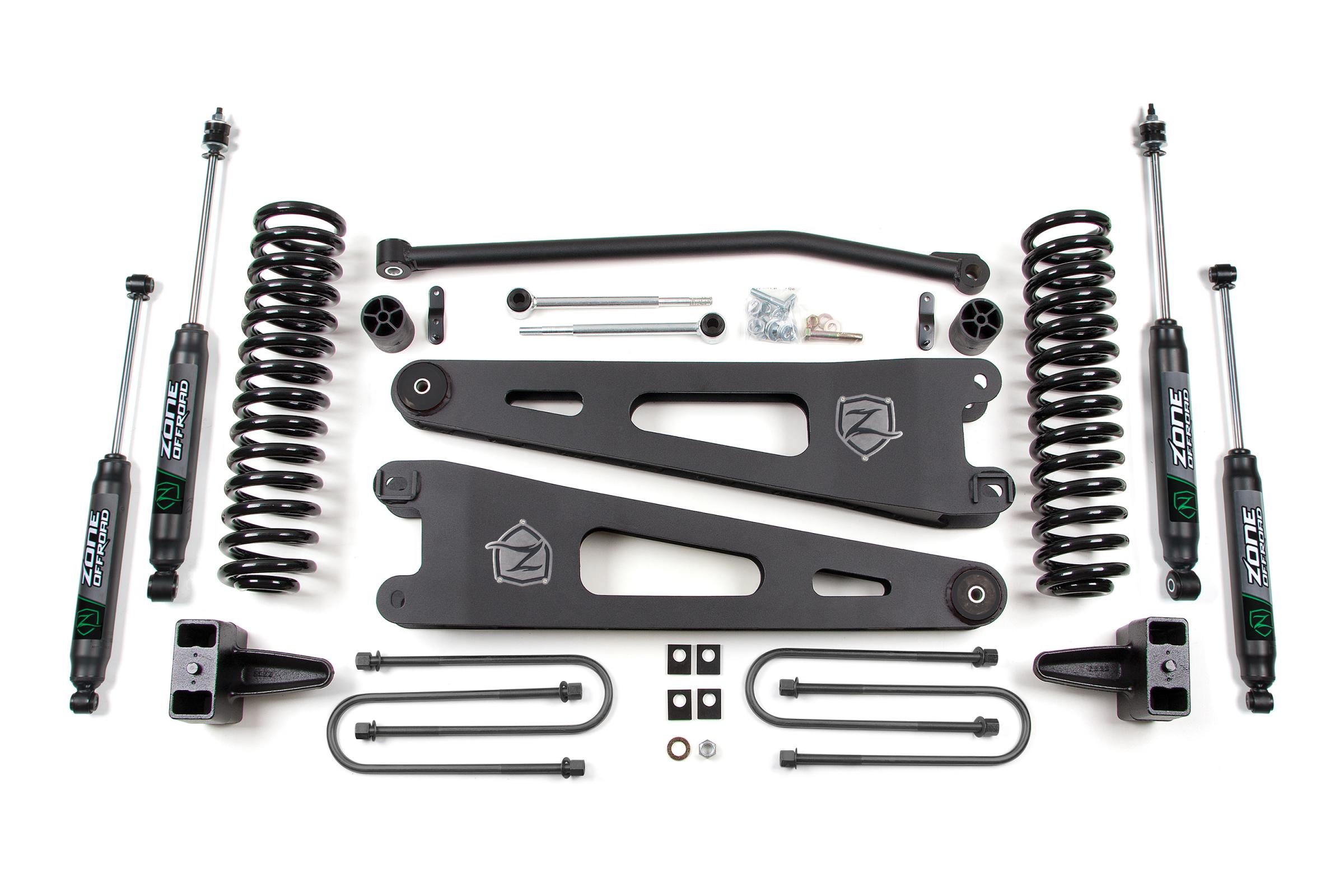

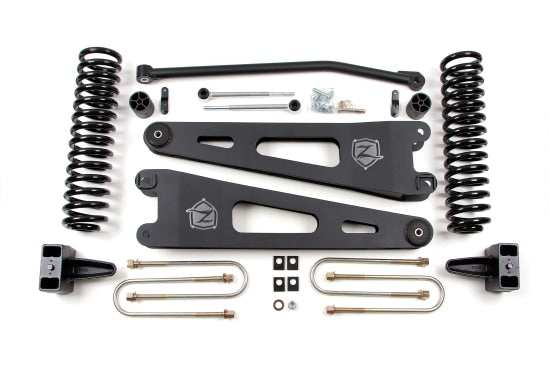

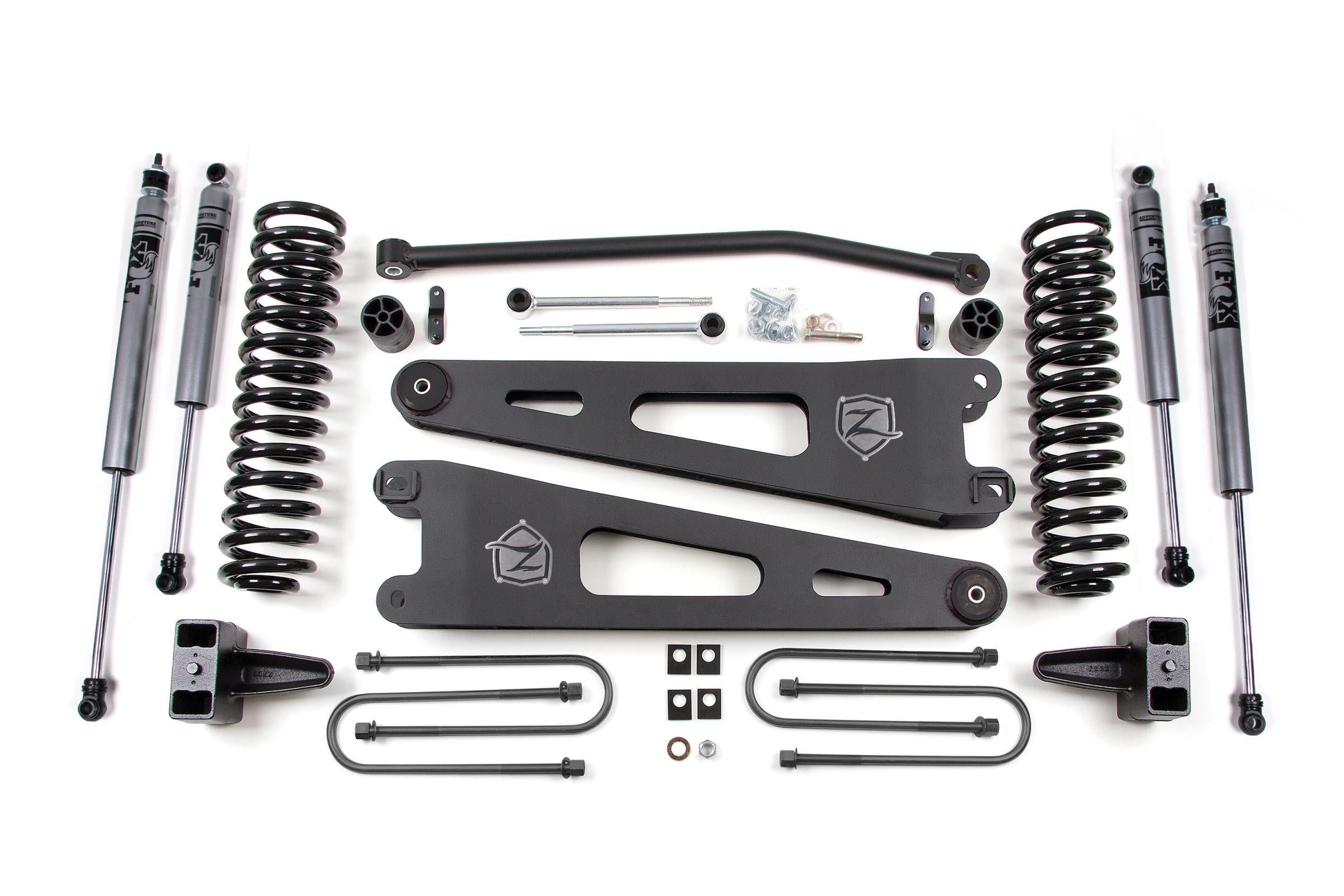

In The Box:

• All Necessary Mounting Installation Hardware
• Coil Springs
• Rear Lift Block & U-Bolt Kit
• Sway Bar Relocation Brackets
• Track Bar
• Radius Arms

Features:

• Full length replacement coil springs add additional ride height while maintaining ride quality.
• Heavy-duty track bar re-centers front axle, adds strength and limits lateral movement.
• High-strength, 1 4 Inch steel construction corrects caster, improves tire clearance, and maximizes ground clearance.
• High-strength, black e-coated U-bolts.
• Rear lift block and longer U-bolts for easy installation and level stance.

Kit Components:

• ZONF1413 2005-2022 Ford F250 350 4 Inch Front Coil Diesel (One) 2 711745599215
• ZONF1414 05-09 Ford F250 350 4 Inch Rear Box Kit 1 711745599222
• ZONF1421 05-07 Ford Super Duty Box Kit 1 711745599253
• ZONF1601 2005-2022 Ford Super Duty Radius Arm (One) 2 711745599291
