15-22 Colorado/Canyon 5.5 Inch Suspension Zone Offroad

To properly lift the Colorado Canyon suspension 5.5 Inch, we started with ductile cast iron steering knuckles that reposition critical steering and control arm mounting locations, and work in harmony with the heavy-duty, fabricated crossmembers.

Differential drop brackets lower and reposition the front differential for correct CV shaft angles and still allow for use of the factory front driveshaft with the help of a spacer that helps retain optimum CV joint positioning.

A full-width differential skid plate protects the relocated differential from the underside and ties the front and rear crossmembers together.

Factory struts are retained and relocated with top spacers to gain a full 5.5 Inch of lift without requiring any strut disassembly and that position the struts to eliminate binding through wheel travel.

In the rear, a new block and U-bolt kit provided 4 Inch of lift to level out the rear with the front. Extended sway bar links, bump stop extensions, and brake line relocation are also included.
Quick Specs:

• Front Lift Height 5.5 Inch
• Rear Lift Height 4 Inch
• Material Steel
• Front Lift Method Strut Spacers
• Rear Lift Method Lift Block
• Lift Type Lift Kit
• Wheel Size 20 x 9
• Back Spacing 5.25 Inch
• Max Tire Size 305 55
• Wheel Size 2 18 x 9
• Back Spacing 2 4.5 Inch
• Max Tire Size 2 295 65
• Wheel Size 317 x 8.5
• Back Spacing 3 4.5 Inch
• Max Tire Size 3 295 65
• Finish Powdercoat
• Accommodates Factory Wheels No

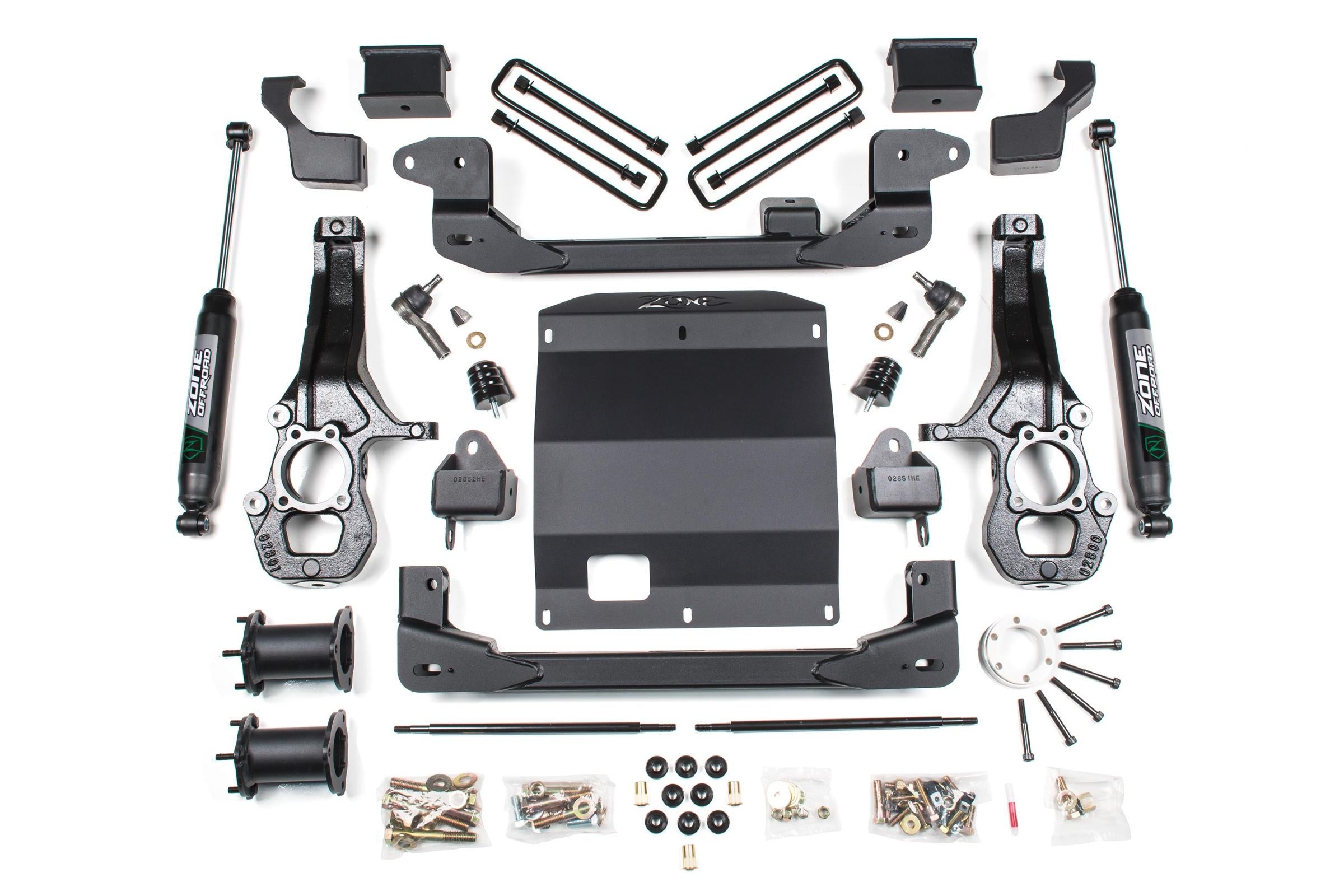

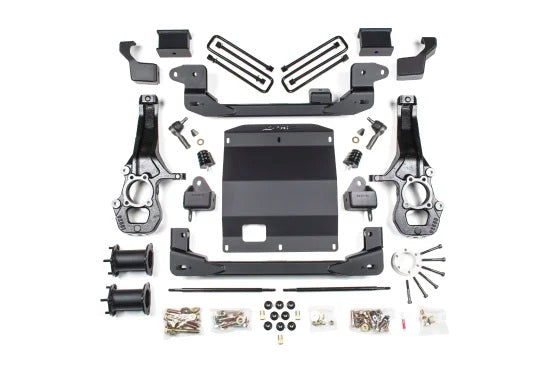

In The Box:

• Differential Relocation Brackets
• Frame Crossmembers - Front and Rear
• Strut Spacer - Front
• Rear Lift Block & U-Bolt Kit
• Sway Bar Links - Front
• Skid Plate
• Steering Knuckles

Features:

• Corrects suspension, steering, and driveline geometry for great on-road handling and improved off-road performance.
• Heavy-duty differential skid slate improves offroad protection.
• High-strength, 1 4 Inch steel construction crossmembers correct lower control arm geometry.
• High-strength, replacement steering knuckles improve strength while correcting steering angles to maintain ESC system compliance.
• Multi-point differential relocation brackets secure front differential for improved CV operating angles.
• Rear lift block and longer u-bolts for easy installation and level stance

Kit Components:

• ZONC2409 2015-2022 Colorado 4 Inch Rear Block Kit 1 711745596870
• ZONC2550 2015-2022 Colorado 5.5 Inch Front Box Kit 1of4 1 711745596900
• ZONC2551 2015-2022 Colorado 5.5 Inch Front Box Kit 2of4 1 711745596917
• ZONC2552 2015-2022 Colorado 5.5 Inch Front Box Kit 3of4 1 711745596924
• ZONC2553 2015-2022 Colorado 5.5 Inch Front Box Kit 4of4 1 711745596931
• ZONC2554 2015-2022 Colorado 5.5 Inch Front Spacer Box Kit 1 711745596948
