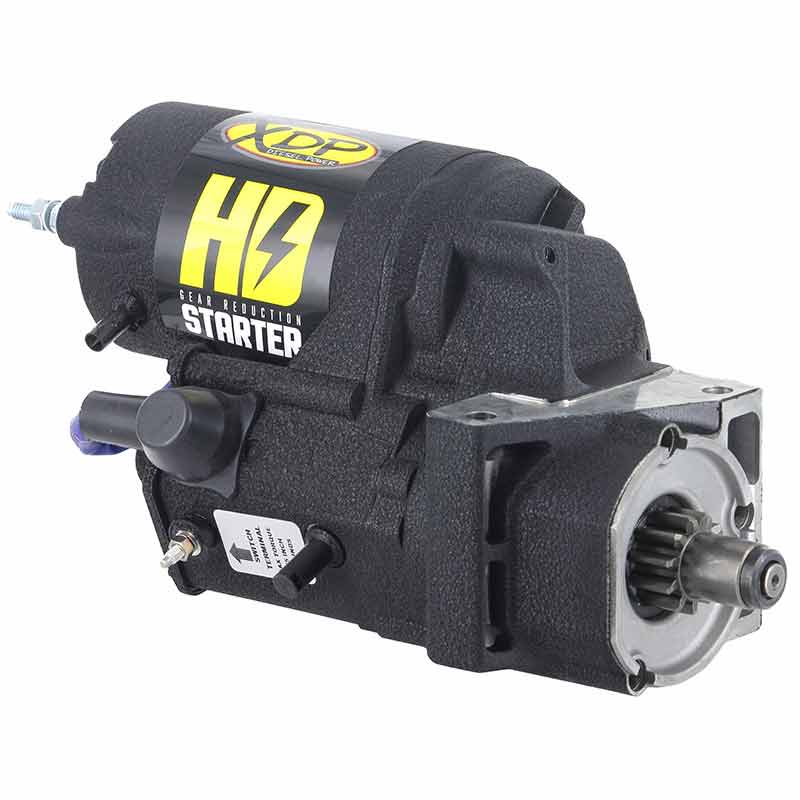

Gear Reduction Starter 82-00 GM 6.2L/6.5L Diesel Wrinkle Black XD250 XDP

You can rely on the XDP HD Gear Reduction Starter (New) Wrinkle Black XD250 to get your 1982-2000 GM 6.2L 6.5L GM Diesel running in the most extreme environments. XDPs HD Gear Reduction Starters are fast, strong, and durable, giving you the ability to turn over even the most aggressive diesel engines.

XDP's HD Gear Reduction Starters feature an efficient motor that will give you the torque you need to consistently and reliably start your truck. Each starter comes pre-tested, ready for installation and features a durable Wrinkle Black finish for corrosion resistance and enhanced aesthetics.

Features:

• HD Gear Reduction Design
• Wrinkle Black Finish
• Direct-Fit Design

Specifications:

• 3.6 HP
• 2.7 KW
• 260 Ft-Lbs. Torque
• 3.8:1 Gear Reduction

Tech Notes:
Depending on the conditions, a starter can pull up to 500 amps. These levels of amperage stress ALL components in the circuit including cables, terminals, batteries, and more. Problems with these components can be difficult to diagnose as they appear fine at rest and under a light load, but generate high resistance under heavy amperage draws.

This results in low voltage to the starter while cranking, causing heavier amperage draw, and increased heat leading to starter failure. Batteries, cables and additional components should be checked and serviced regularly.

Voltage measured at the starter during cranking should always be above 11V DC. Starter heat shields are not required, but are an excellent idea for heat protection.

The knurling on the factory mounting bolts should provide a snug fit at the time of installation. If they are not snug in the bolt holes, the bolts should be replaced.
The factory support bracket should also be installed. if that is missing, it should also be purchased.In some instances, the battery cable may have to be re-routed to reach the battery stud on the starter.
