Susp Lift Kits 4wd|Ford F-250/F-350 Super Duty (08-10)

This suspension features luxury ride coil springs matching OE coils rates that are specifically designed for diesel motors. A heavy duty track bar relocation bracket properly centers the axle and matches the steering angles created by the supplied drop pitman arm while the radius arm drop brackets maintain the Super Duty's O.E.

caster angles. A steering stabilizer relocation bracket maintains proper steering control but a RC problem solver single unit is recommended with larger tires and a RC dual stabilizer is required when running 37in tires.

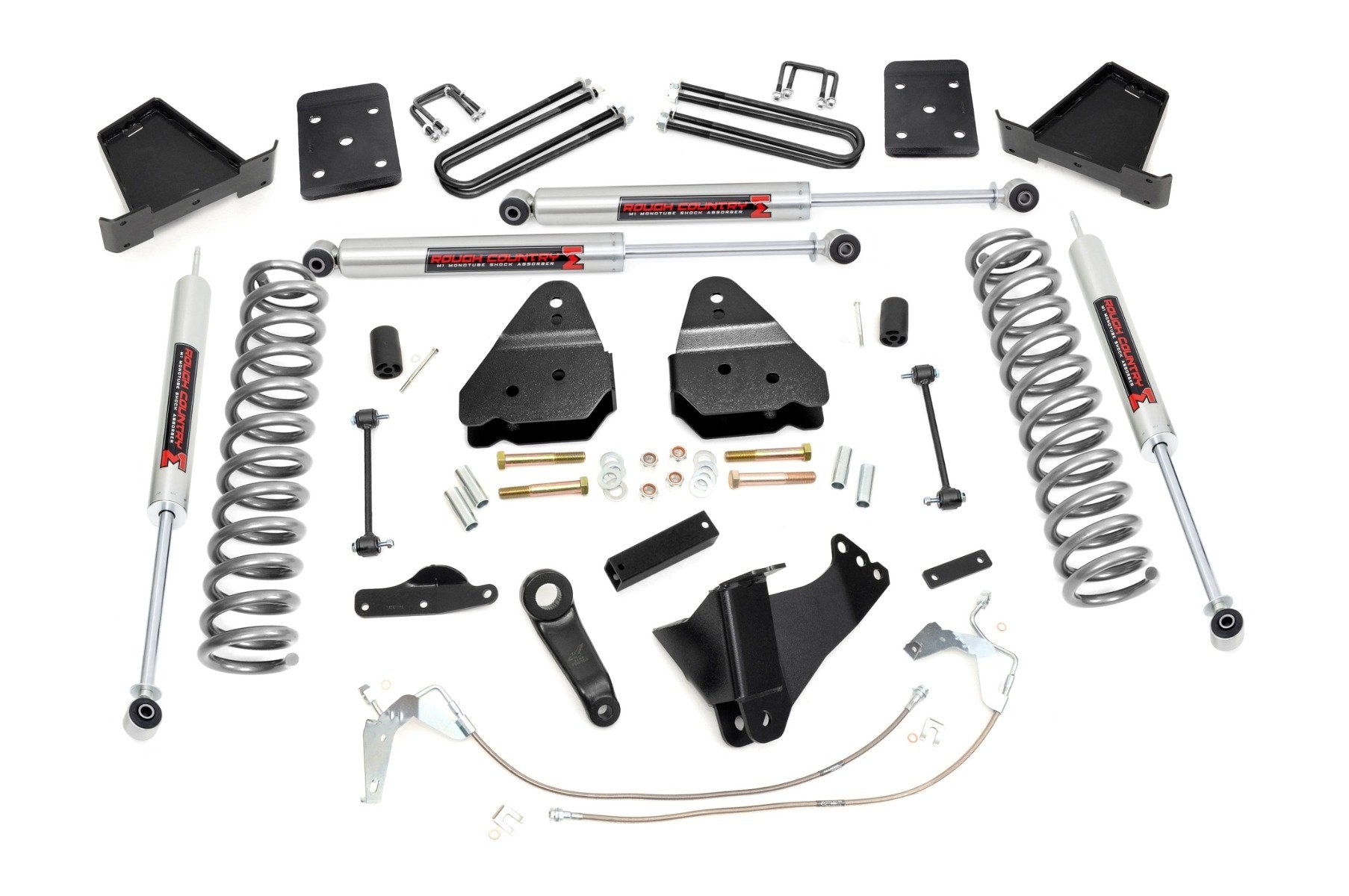

Variant: 4.5 Inch Lift Kit|M1 Monotube|W/O Overloads SKU: 47840-DHTP

Features:

• Easy bolt-on installation Increased ground clearance Levels the front with the rear of the vehicle Fabricated blocks are stronger and offer a longer lifespan than cast blocks
• Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problem
• Radius arm drop brackets allow for properly set caster
• Proper caster is crucial to maintaining factory handling and driveability
• Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use

Notes:

• Does NOT fit V-8 gas engine models
• Does NOT fit dually models
• V-10 gas engine models will require exhaust modification to clear the front driveshaft
• If vehicle is equipped with rear overload leafs, they will need to be removed

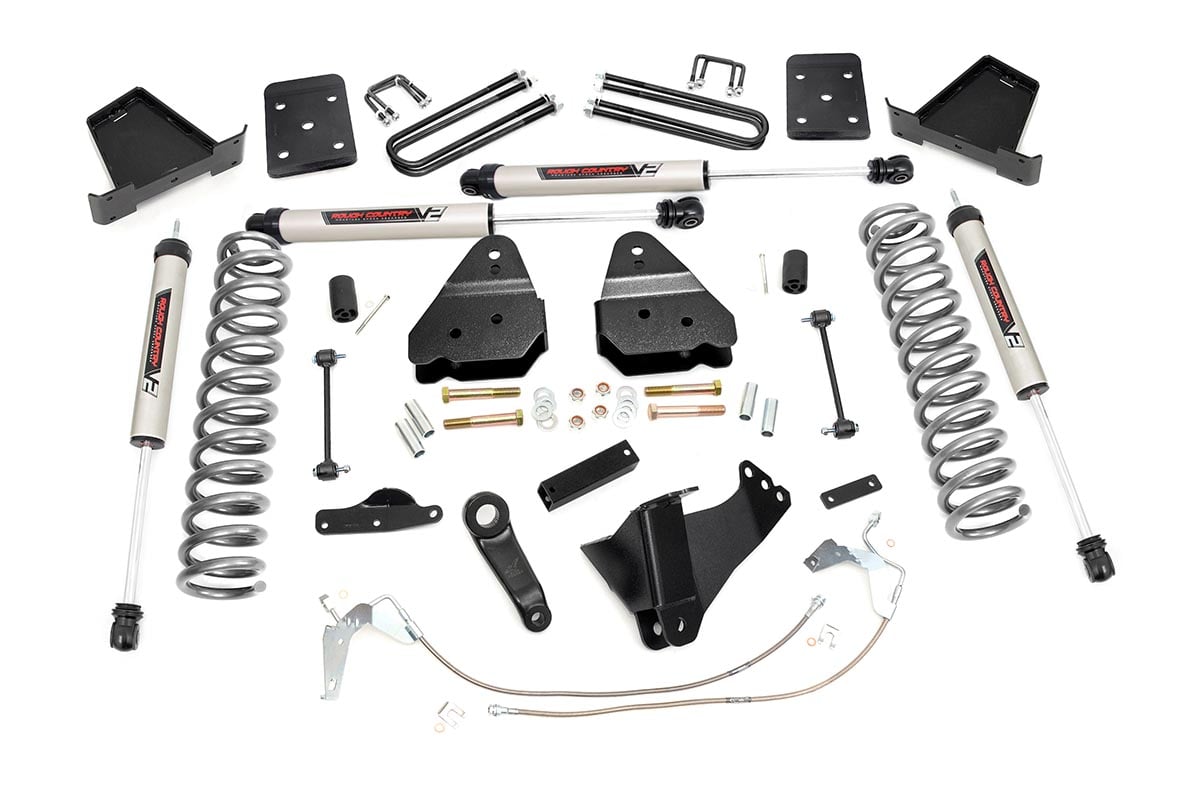

Variant: 4.5 Inch Lift Kit|V2 Monotube|W/O Overloads SKU: 47870-DHTP

Notes:

• Does NOT fit V-8 gas engine models
• Does NOT fit dually models
• V-10 gas engine models will require exhaust modification to clear the front driveshaft
• If vehicle is equipped with rear overload leafs, they will need to be removed

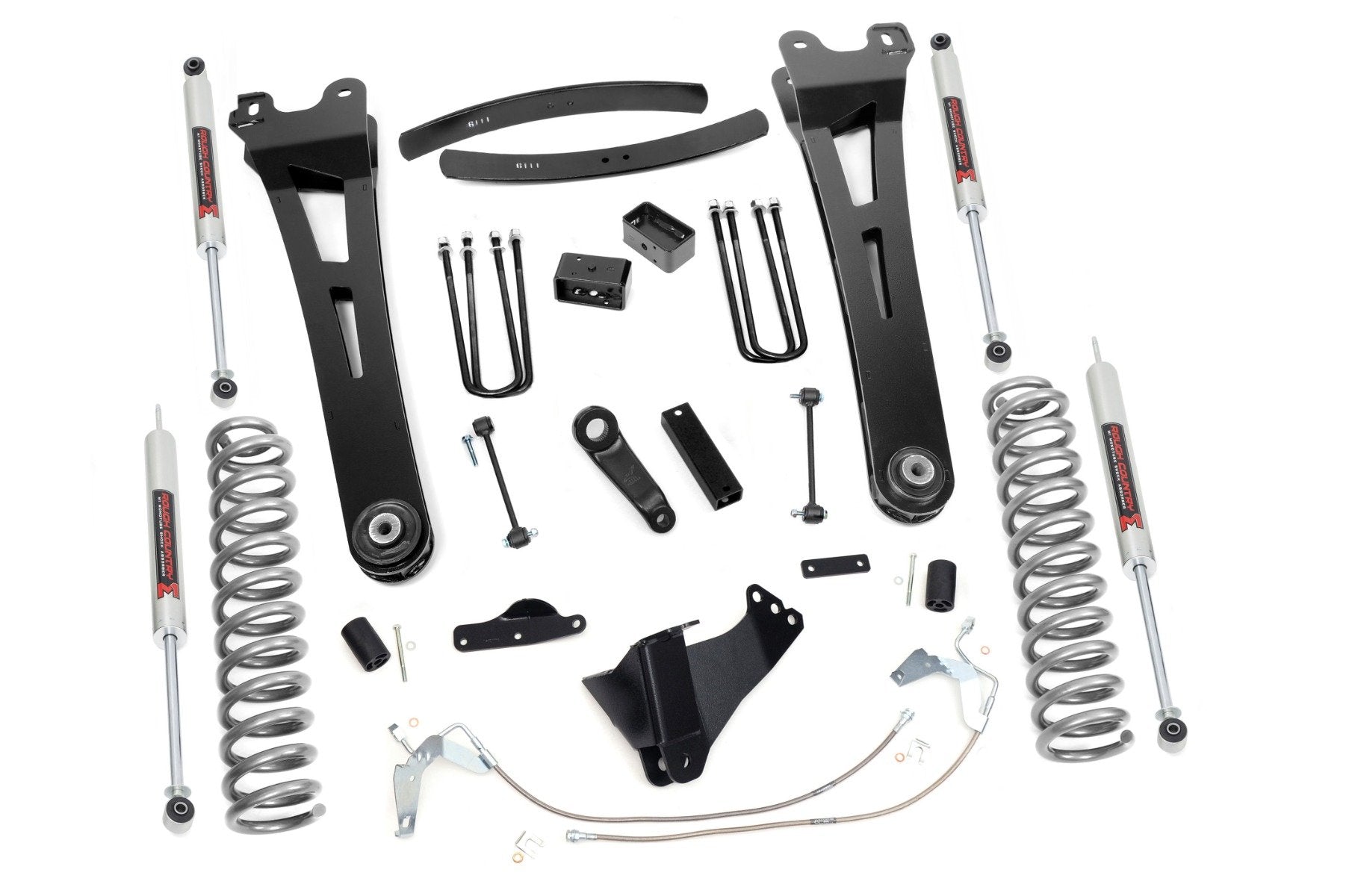

Variant: 6 Inch Lift Kit|Radius Arm|Gas|M1 Monotube SKU: 53940-DHTP

Notes:

• Does NOT fit dually models
• Does NOT fit diesel engine models
• Factory rear contact overload springs will need to be removed

Variant: 6 Inch Lift Kit|Radius Arm|Diesel|M1 Monotube SKU: 53840-DHTP

Notes:

• Does NOT fit dually models
• Does NOT fit gas engine models
• Factory rear contact overload springs will need to be removed

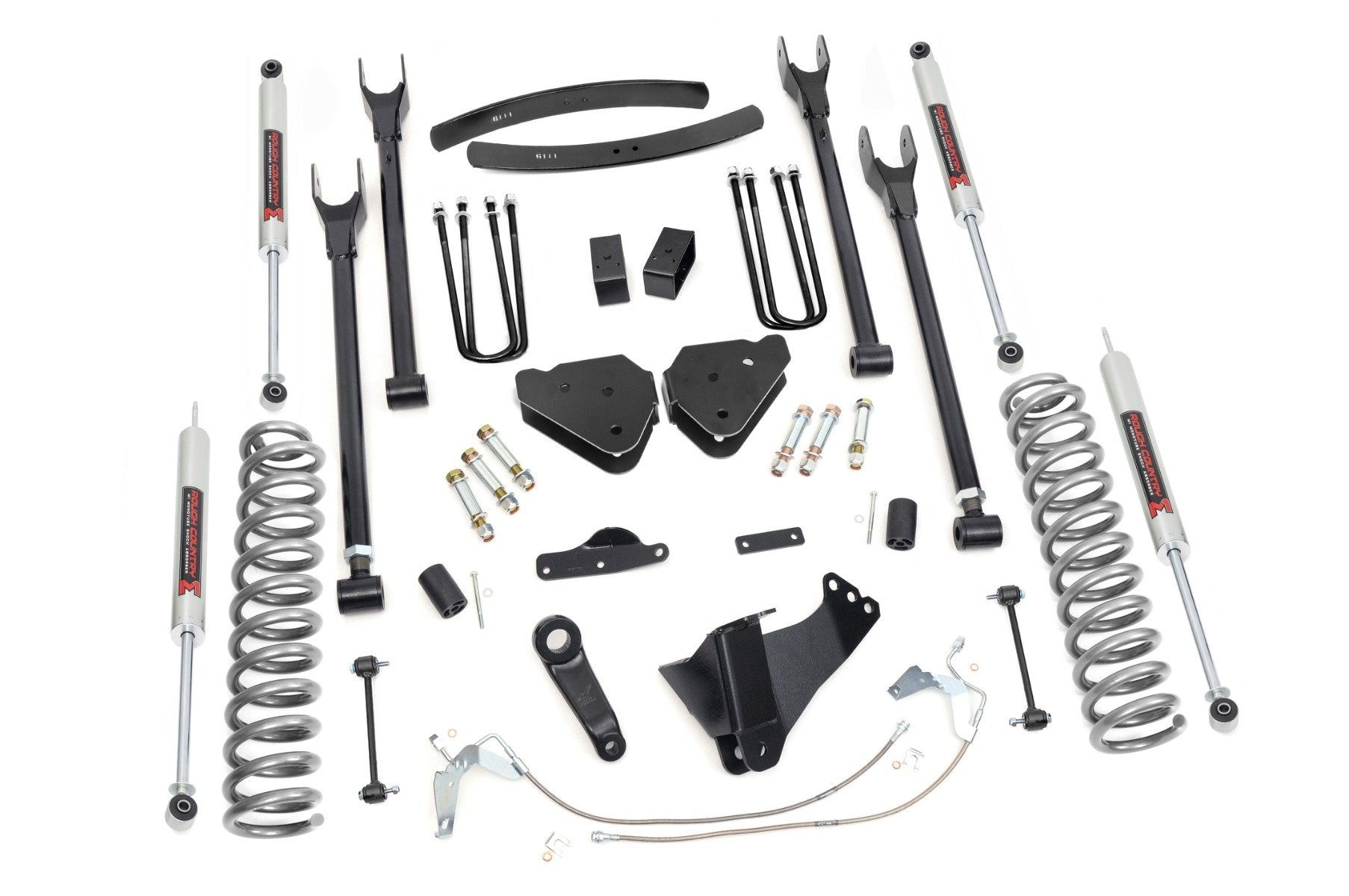

Variant: 6 Inch Lift Kit|4 Link|Diesel|M1 Monotube SKU: 58440-DHTP

Notes:

• Does NOT fit dually models
• Does NOT fit gas engine models
• If vehicle is equipped with rear overload leafs, they will need to be removed

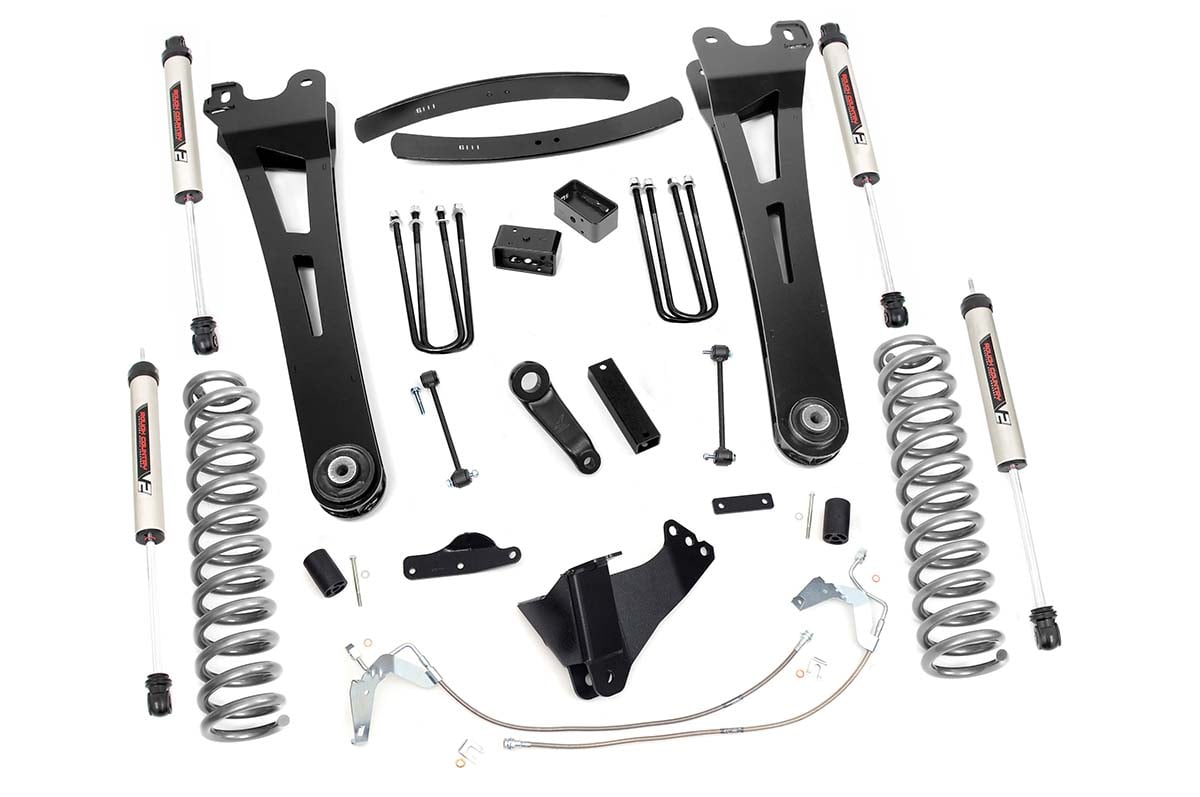

Variant: 6 Inch Lift Kit|Radius Arm|Diesel|V2 Monotube SKU: 53870-DHTP

Notes:

• Does NOT fit dually models
• Factory rear contact overload springs will need to be removed Gas models may require exhaust modification to clear front drive shaft

Variant: 6 Inch Lift Kit|Radius Arm|Gas|V2 Monotube SKU: 53970-DHTP

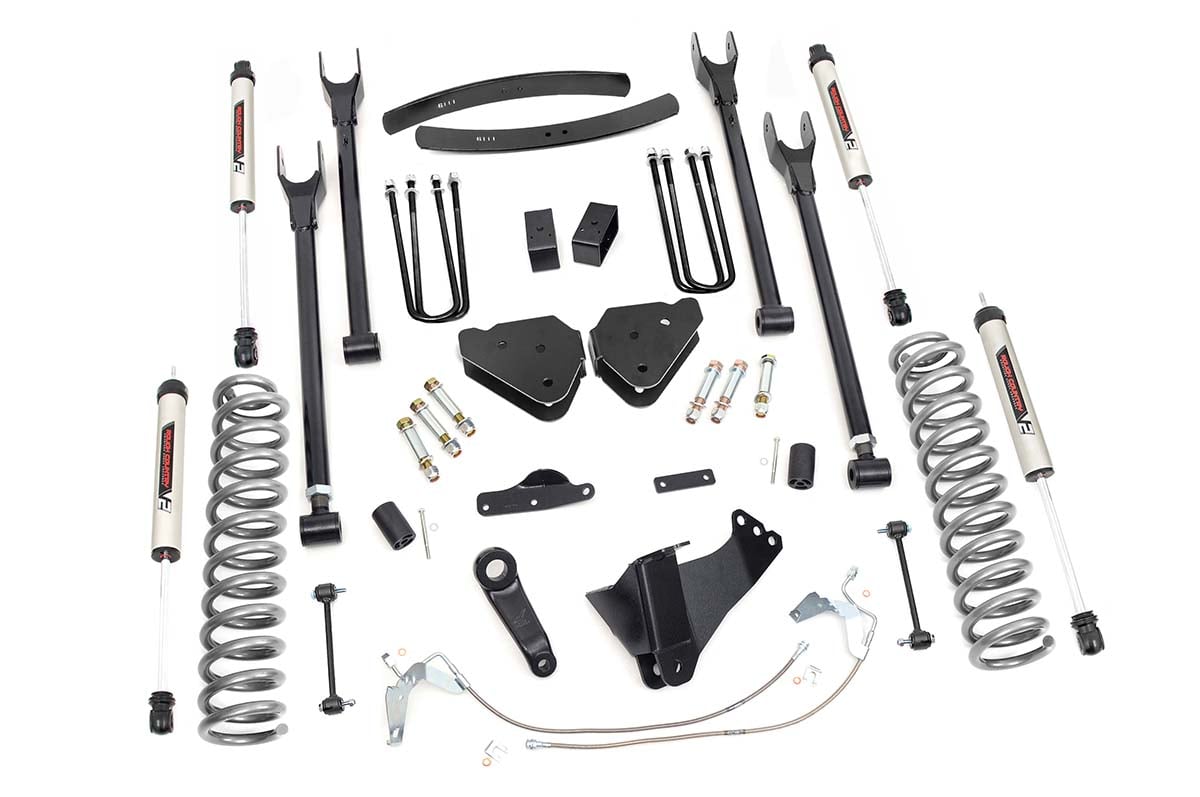

Variant: 6 Inch Lift Kit|4 Link|Diesel|V2 Monotube SKU: 58470-DHTP

Notes:

• Does NOT fit dually models
• If vehicle is equipped with rear overload leafs, they will need to be removed
• Gas models may require exhaust modification to clear front drive shaft

Variant: 6 Inch Lift Kit|Radius Arm|Diesel SKU: 538.2-DHTP
